SCTF2023 逆向 SycTee 出题与解题思路

新闻资讯 2023-07-12 17:59 41 0

一

前言

SCTF2023是本年度xctf的第二次分站赛，这是第一次出这样大型的比赛的题，头一次没打xctf，在观赛者的角度来看比赛进程，是另一种体验，既担心自己题出的太简单，又怕题没人做。

这次比赛出题时间并不多，因为中间还穿插着一些比赛，所以真正开始出题大概是在比赛开始前2天，通宵两天把题目出完，在晚上9点上题前甚至还在添加一些东西，可能有些师傅会觉得有些脑洞，给师傅们造成了不好的体验，在这给各位师傅磕头了orz。

二

做题情况&题目描述

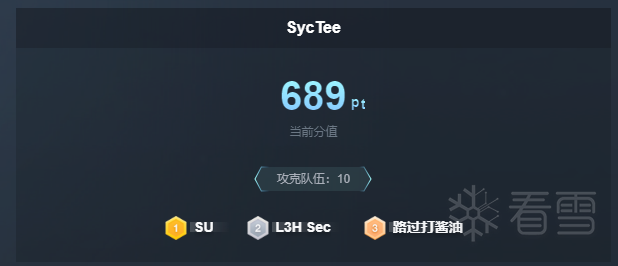

做题情况：

看到师傅们都在通宵做题，还是很感动的。

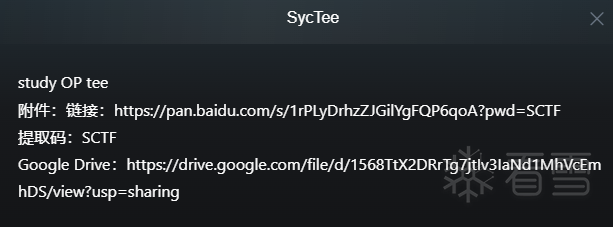

题目描述：

三

出题思路

1.TEE和TA

TEE的全称trusted execution environment，它是移动设备（智能手机、平板电脑、智能电视）CPU上的一块区域。这块区域的作用是给数据和代码的执行提供一个更安全的空间，并保证它们的机密性和完整性。TEE提供了一个与REE隔离的环境保存用户的敏感信息，TEE可以直接获取REE的信息，而REE不能获取TEE的信息。

而该题的出题思路就是旨在构建一个tee的系统。

TA（Trusted Application）是TEE中完成特定功能的应用，也叫做可信应用程序。由于TEE中完成计算因此具有较高的安全性。每一个TA在REE中有一个或者多个对应的CA，在REE环境中可以通过调用CA的接口，将信息传送到TEE环境中执行TA，完成对应功能然后返回计算结果。

了解了tee是什么，还应该了解一下一些基本名词：

◆CA（Client APP）：对应一些上层应用，通过调用TEE Client API实现与TEE环境的交互。

◆REE Communication Agent：为TA和CA之间的消息传递提供了REE支持。

◆TEE Client API：是REE中的TEE驱动程序提供给外部的接口，可以使运行在REE中的CA能够与运行在TEE中的TA交换数据。

◆TEE Communication Agent：是可信操作系统的特殊组成部分，它与REE Communication Agent一起工作，使TA与CA之间安全地传输消息。

◆TEE Internal Core API：是TEE操作系统提供给TA调用的内部接口，包括密码学算法，内存管理等功能。

◆Trusted Device Drivers：可信设备驱动程序，为专用于TEE的可信外设提供通信接口。

◆Shared Memory：是一块只有CA和TA可以访问的一块安全内存，CA和TA通过共享内存来快速有效传输指令和数据。

CA与TA交互流程：CA首先调用TEE Client API触发系统调用，进入REE的操作系统内核态，根据CA调用的参数找到对应的REE驱动程序，REE驱动程序通过调用SMC汇编指令进入Monitor模式，并将处理器切换到安全内核状态，进入安全模式。切换进入TEE以后，CA的服务请求通过总线传到TEE侧，然后TEE OS通过TEE Internal API调用对应的TA，最后TA运行结束后将运行结果和数据返回给CA，执行完以后回到TEE内核态调用SMC汇编指令进入Monitor切回REE环境。

其实用更简单的理解就是：应用层输入 -> 内核 -> TA -> 内核 -> 应用层验证结果。

2.思路

如果在网上搜，其实这种类型题就在RealWorld上出现过：https://bestwing.me/RWCTF-4th-TrustZone-challenge-Writeup.html

这个题他的考点是求被加密的FEK，类似一个密码题，所以这次出题就换一个思路，原本思路是在optee框架下，build出一个rust的基于arm架构的ta文件，在上一些全局变量，顺便来点动调，把整个optee项目打包出题，不过由于时间问题，并没有完成大部分。在构建系统的时候踩过很多坑，接下来我在介绍的时候会尽量详细介绍，网上可阅读的解决方案实在少之又少。

OPTEE

项目文档：https://optee.readthedocs.io/en/latest/

OP-TEE 是一个可信执行环境 (TEE)，旨在与在 Arm 上运行的非安全 Linux 内核配套使用；使用 TrustZone 技术的 Cortex-A 内核。

该项目的构建有两种方法：第一种是用repo直接懒人布置，第二种是手拉文件，逐项布置。

两种方式各有各的坏处，但综合起来第一种方式更好。首先如果选用repo来部署的话，会面临一个被墙的问题，即使在虚拟机里配代理，又或者是在服务器上拉都会遇到很大报错问题。手拉文件也会遇到很多问题，比如optee-client的make会报很多错误，网上并没有很多解决方案。

环境构建：

repo的安装：

mkdir ~/bin
PATH=~/bin:$PATH
//下载工具并执行
curl https://storage.googleapis.com/git-repo-downloads/repo > ~/bin/repo
chmod a+x ~/bin/repo

接下来初始化repo：

cd optee
mkdir optee
repo init -u https://github.com/OP-TEE/manifest.git -m qemu_v8.xml --repo-url=https://mirrors.tuna.tsinghua.edu.cn/git/git-repo/ -b 3.18.0

在这里我拉取的是3.18.0版本的optee，而且用qemu_v8平台，建议换源来拉。

在.repo\manifests目录下可以看到qemu_v8.xml配置单。

<?xml version="1.0" encoding="UTF-8"?>
<manifest>
        <remote name="github"   fetch="https://github.com" />
        <remote name="tfo"      fetch="https://git.trustedfirmware.org" />

        <default remote="github" revision="master" clone-depth="1"/>

        <!-- OP-TEE gits -->
        <project path="optee_client"         name="OP-TEE/optee_client.git" revision="refs/tags/3.8.0" clone-depth="1" />
        <project path="optee_os"             name="OP-TEE/optee_os.git" revision="refs/tags/3.8.0" clone-depth="1" />
        <project path="optee_test"           name="OP-TEE/optee_test.git" revision="refs/tags/3.8.0" clone-depth="1" />
        <project path="build"                name="OP-TEE/build.git" revision="refs/tags/3.8.0" clone-depth="1">
                <linkfile src="qemu_v8.mk" dest="build/Makefile" />
        </project>

        <!-- linaro-swg gits -->
        <project path="linux"                name="linaro-swg/linux.git"                  revision="9823b258b332b4ac98e05fa23448bbc9e937b24c" clone-depth="1" />
        <project path="optee_benchmark"      name="linaro-swg/optee_benchmark.git" revision="refs/tags/3.8.0" clone-depth="1"/>
        <project path="optee_examples"       name="linaro-swg/optee_examples.git" revision="refs/tags/3.8.0" clone-depth="1" />
        <project path="soc_term"             name="linaro-swg/soc_term.git"               revision="5493a6e7c264536f5ca63fe7511e5eed991e4f20" clone-depth="1" />

        <!-- Misc gits -->
        <project path="buildroot"            name="buildroot/buildroot.git"               revision="95942f5fcd35d783a49adce621ccf33480f1c88c" clone-depth="1" />
        <project path="edk2"                 name="tianocore/edk2.git"                    revision="dd4cae4d82c7477273f3da455084844db5cca0c0" clone-depth="1" />
        <project path="mbedtls"              name="ARMmbed/mbedtls.git"                   revision="refs/tags/mbedtls-2.16.0" clone-depth="1" />
        <project path="qemu"                 name="qemu/qemu.git"                         revision="refs/tags/v3.1.0-rc3" clone-depth="1" />
        <project path="trusted-firmware-a"   name="TF-A/trusted-firmware-a.git"           revision="34efb683e32254b8c325ac3071c5776d243a7b99" remote="tfo" />
</manifest>

接下来就是要下载配置单的过程：

//-j是开启多线程，不加也可以
repo sync -j8

在下载前呢，需要设置代理，这样更快，或者在qemu_v8清单中的revision后加上clone-depth="1"，或者：

//将配置单换成.git速度更快
sed -i "s/\.git//g" .repo/manifest.xml

最后别忘了代理：

 export https_proxy=http://127.0.0.1:7890
 http_proxy=http://127.0.0.1:7890
 all_proxy=socks5://127.0.0.1:7890

不过经过测验，这个拉取也是需要时间的，不管用服务器还是设代理有时候照样拉不了，多尝试几次就可以拉了，我是下午的时候拉成功的。

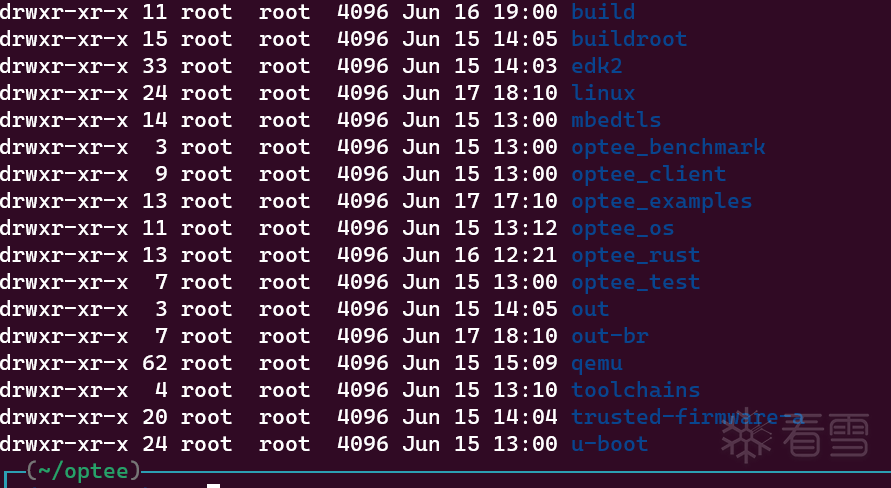

构建完的目录如下：

optee_example和optee_rust目录都是可以自己创建ta程序.

如果某些文件实在拉不下来，就手拉，从qemu-v8里找，一个一个拉，但版本要一定。

接下来获取工具链：

cd build
make toolchains

实在不能获取，就只能手拉下载，解压即可。

然后在build目录下：

make

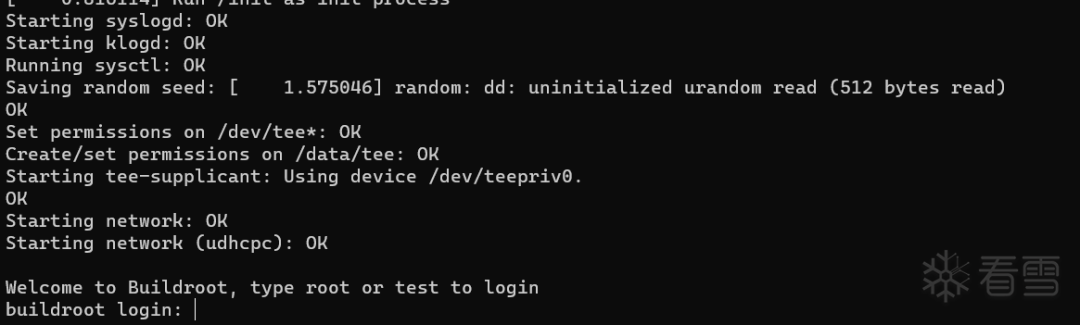

之后能得到/out/bin文件夹下就是启动文件，设置run.sh启动。

#!/bin/sh

qemu-system-aarch64 \
-nographic \
-smp 2 \
-machine virt,secure=on,gic-version=3,virtualization=false \
-cpu cortex-a57 \
-d unimp -semihosting-config enable=on,target=native \
-m 1024 \
-bios bl1.bin \
-initrd rootfs.cpio.gz \
-kernel Image -no-acpi \
-append console="ttyAMA0,38400 keep_bootcon root=/dev/vda2 -object rng-random,filename=/dev/urandom,id=rng0 -device virtio-rng-pci,rng=rng0,max-bytes=1024,period=1000" \
-no-reboot \
-monitor null

接下来是编译rust，在optee_rust里有许多测试用例：

(cd build && make toolchains && make OPTEE_RUST_ENABLE=y CFG_TEE_RAM_VA_SIZE=0x00300000)

不过当时编译了一天一直报错，首先是helloworld-rs有错误，删除之后再编译就会出现缺少glibc库，解决方案还没有思路，不过应该要看一下makefile是怎么做的。

源码：

bj666将数据全部存储在了ta文件中，不需要host的main进行传输数据，用了rc4，输入key就能得到right。

static TEE_Result www(uint32_t param_types,
    TEE_Param params[4])
{
    uint32_t exp_param_types = TEE_PARAM_TYPES(TEE_PARAM_TYPE_MEMREF_INOUT,
                           TEE_PARAM_TYPE_NONE,
                           TEE_PARAM_TYPE_NONE,
                           TEE_PARAM_TYPE_NONE);

    //who需要爆破
    const char *who = (const char *)(params[0].memref.buffer);
    const size_t GREETING_LEN = strlen(who);
    if (param_types != exp_param_types)
        return TEE_ERROR_BAD_PARAMETERS;
    char *buf = TEE_Malloc(strlen(who) + GREETING_LEN + 1, 0);

    if (!buf)
    {
        return TEE_ERROR_OUT_OF_MEMORY;
    }
    int data[34] = {0x73,0x63,0x74,0x66,0x7b,0x54,0x65,0x33,0x26,0x54,0x41,0x5f,0x69,0x73,0x5f,0x73,0x61,0x66,0x33,0x5f,0x62,0x75,0x74,0x5f,0x46,0x41,0x4b,0x45,0x5f,0x46,0x4c,0x41,0x47,0x7d};
    enc_dec(who,data);
    int cmp[34] = {0x8e,0xd6,0x93,0x67,0x84,0xce,0xd2,0x7d,0xcb,0x9a,0xb7,0xa8,0x65,0xe6,0x97,0x80,0x63,0x26,0x74,0x7c,0xdf,0xcd,0x3a,0x8b,0x9f,0x38,0x9e,0x9f,0x7a,0xd4,0x9d,0xfe,0x36,0x88};
    for(int i = 0; i < strlen(data); i++){
        if(cmp[i] != data[i])
        {
            sprintf(buf, "wrong %s", who);
            params[0].memref.size = strlen(buf) + 1;
            TEE_MemMove(params[0].memref.buffer, buf, params[0].memref.size);
            TEE_Free(buf);
            return TEE_ERROR_BAD_PARAMETERS;
        }
    }
    char *buf1 = TEE_Malloc(strlen(who) + GREETING_LEN + 1, 0);
    sprintf(buf1, "right but it is a test ^_^%s", who);
    params[0].memref.size = strlen(buf1) + 1;
    TEE_MemMove(params[0].memref.buffer, buf1, params[0].memref.size);
    TEE_Free(buf1);
    return TEE_SUCCESS;
}

重点是bj888文件,采取了魔改原有aes的方法：

main.c

/*
 * Copyright (c) 2017, Linaro Limited
 * All rights reserved.
 *
 * Redistribution and use in source and binary forms, with or without
 * modification, are permitted provided that the following conditions are met:
 *
 * 1. Redistributions of source code must retain the above copyright notice,
 * this list of conditions and the following disclaimer.
 *
 * 2. Redistributions in binary form must reproduce the above copyright notice,
 * this list of conditions and the following disclaimer in the documentation
 * and/or other materials provided with the distribution.
 *
 * THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
 * AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
 * IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
 * ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE
 * LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
 * CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
 * SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS
 * INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
 * CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
 * ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
 * POSSIBILITY OF SUCH DAMAGE.
 */

#include <err.h>
#include <stdio.h>
#include <string.h>

/* OP-TEE TEE client API (built by optee_client) */
#include <tee_client_api.h>

/* For the UUID (found in the TA's h-file(s)) */
#include <bj888_ta.h>

#define BJ888_TEST_BUFFER_SIZE	4096
#define BJ888_TEST_KEY_SIZE	16
#define BJ888_BLOCK_SIZE		16

#define DECODE			0
#define ENCODE			1

/* TEE resources */
struct test_ctx {
    TEEC_Context ctx;
    TEEC_Session sess;
};

void prepare_tee_session(struct test_ctx *ctx)
{
    TEEC_UUID uuid = TA_BJ888_UUID;
    uint32_t origin;
    TEEC_Result res;

    /* Initialize a context connecting us to the TEE */
    res = TEEC_InitializeContext(NULL, &ctx->ctx);
    if (res != TEEC_SUCCESS)
        errx(1, "TEEC failed with code 0x%x", res);

    /* Open a session with the TA */
    res = TEEC_OpenSession(&ctx->ctx, &ctx->sess, &uuid,
                   TEEC_LOGIN_PUBLIC, NULL, NULL, &origin);
    if (res != TEEC_SUCCESS)
        errx(1, "TEEC failed with code 0x%x origin 0x%x",
            res, origin);
}

void terminate_tee_session(struct test_ctx *ctx)
{
    TEEC_CloseSession(&ctx->sess);
    TEEC_FinalizeContext(&ctx->ctx);
}

void prepare_bj888(struct test_ctx *ctx, int encode)
{
    TEEC_Operation op;
    uint32_t origin;
    TEEC_Result res;

    memset(&op, 0, sizeof(op));
    op.paramTypes = TEEC_PARAM_TYPES(TEEC_VALUE_INPUT,
                     TEEC_VALUE_INPUT,
                     TEEC_VALUE_INPUT,
                     TEEC_NONE);

    op.params[0].value.a = TA_BJ888_ALGO_CTR;
    op.params[1].value.a = TA_BJ888_SIZE_128BIT;
    op.params[2].value.a = encode ? TA_BJ888_MODE_ENCODE :
                    TA_BJ888_MODE_DECODE;

    res = TEEC_InvokeCommand(&ctx->sess, TA_BJ888_CMD_PREPARE,
                 &op, &origin);
    if (res != TEEC_SUCCESS)
        errx(1, "TEEC_InvokeCommand failed 0x%x origin 0x%x",
            res, origin);
}

void set_key(struct test_ctx *ctx, char *key, size_t key_sz)
{
    TEEC_Operation op;
    uint32_t origin;
    TEEC_Result res;

    memset(&op, 0, sizeof(op));
    op.paramTypes = TEEC_PARAM_TYPES(TEEC_MEMREF_TEMP_INPUT,
                     TEEC_NONE, TEEC_NONE, TEEC_NONE);

    op.params[0].tmpref.buffer = key;
    op.params[0].tmpref.size = key_sz;

    res = TEEC_InvokeCommand(&ctx->sess, TA_BJ888_CMD_SET_KEY,
                 &op, &origin);
    if (res != TEEC_SUCCESS)
        errx(1, "TEEC_InvokeCommand failed 0x%x origin 0x%x",
            res, origin);
}

void set_iv(struct test_ctx *ctx, char *iv, size_t iv_sz)
{
    TEEC_Operation op;
    uint32_t origin;
    TEEC_Result res;

    memset(&op, 0, sizeof(op));
    op.paramTypes = TEEC_PARAM_TYPES(TEEC_MEMREF_TEMP_INPUT,
                      TEEC_NONE, TEEC_NONE, TEEC_NONE);
    op.params[0].tmpref.buffer = iv;
    op.params[0].tmpref.size = iv_sz;

    res = TEEC_InvokeCommand(&ctx->sess, TA_BJ888_CMD_SET_IV,
                 &op, &origin);
/*
    if (res != TEEC_SUCCESS)
        errx(1, "TEEC_InvokeCommand failed 0x%x origin 0x%x",
            res, origin);
*/
            }

void cipher_buffer(struct test_ctx *ctx, char *in, char *out, size_t sz)
{
    TEEC_Operation op;
    uint32_t origin;
    TEEC_Result res;

    memset(&op, 0, sizeof(op));
    op.paramTypes = TEEC_PARAM_TYPES(TEEC_MEMREF_TEMP_INPUT,
                     TEEC_MEMREF_TEMP_OUTPUT,
                     TEEC_NONE, TEEC_NONE);
    op.params[0].tmpref.buffer = in;
    op.params[0].tmpref.size = sz;
    op.params[1].tmpref.buffer = out;
    op.params[1].tmpref.size = sz;

    res = TEEC_InvokeCommand(&ctx->sess, TA_BJ888_CMD_CIPHER,
                 &op, &origin);
/*
    if (res != TEEC_SUCCESS)
        errx(1, "TEEC_InvokeCommand failed 0x%x origin 0x%x",
        res, origin);
*/
    //const char *g = (const char*)(op.params[1].tmpref.buffer);
    //for(int i = 0; i < 32; i++){
        //printf("%02x",g[i]);
//	}
    const char *greeting = (const char *)(op.params[0].tmpref.buffer);
    printf("%s\n",greeting);
            }

int main(int argc, char *argv[])
{
    struct test_ctx ctx;
    char key[BJ888_TEST_KEY_SIZE] = "snbjklefsdcvfsyc";
    char iv[BJ888_BLOCK_SIZE] = "snbjklefsdcvfsyc";
    char clear[BJ888_TEST_BUFFER_SIZE];
    char ciph[BJ888_TEST_BUFFER_SIZE];
    char temp[BJ888_TEST_BUFFER_SIZE];
    for( int i = 0; i < strlen(argv[1]); i++){
        clear[i] = argv[1][i];
    }
    if(strlen(argv[1]) != 27){
        printf("wrong\n");
        exit(1);
    }
    //printf("%s\n",clear);
    //printf("Prepare session with the TA\n");
    prepare_tee_session(&ctx);

    //printf("Prepare encode operation\n");
    prepare_bj888(&ctx, ENCODE);

    //printf("Load key in TA\n");
    //memset(key, 0xa5, sizeof(key)); /* Load some dummy value */
    set_key(&ctx, key, BJ888_TEST_KEY_SIZE);
    //printf("key:::%02x,%02x,%02x\n",key[0],key[1],key[15]);

    //printf("Reset ciphering operation in TA (provides the initial vector)\n");
    //memset(iv, 0, sizeof(iv)); /* Load some dummy value */
    set_iv(&ctx, iv, BJ888_BLOCK_SIZE);
    //printf("iv:::%02x,%02x,%02x\n",iv[0],iv[1],iv[15]);

    //memset(clear, 0x5a, sizeof(clear)); /* Load some dummy value */
    cipher_buffer(&ctx, clear, ciph, BJ888_TEST_BUFFER_SIZE);

    terminate_tee_session(&ctx);
    return 0;
}

bj888.ta

/*
 * Copyright (c) 2017, Linaro Limited
 * All rights reserved.
 *
 * Redistribution and use in source and binary forms, with or without
 * modification, are permitted provided that the following conditions are met:
 *
 * 1. Redistributions of source code must retain the above copyright notice,
 * this list of conditions and the following disclaimer.
 *
 * 2. Redistributions in binary form must reproduce the above copyright notice,
 * this list of conditions and the following disclaimer in the documentation
 * and/or other materials provided with the distribution.
 *
 * THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
 * AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
 * IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
 * ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE
 * LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
 * CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
 * SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS
 * INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
 * CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
 * ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
 * POSSIBILITY OF SUCH DAMAGE.
 */
#include <inttypes.h>
#include<string.h>
#include <tee_internal_api.h>
#include <tee_internal_api_extensions.h>

#include <bj888_ta.h>

#define BJ888128_KEY_BIT_SIZE		128
#define BJ888128_KEY_BYTE_SIZE		(BJ888128_KEY_BIT_SIZE / 8)
#define BJ888256_KEY_BIT_SIZE		256
#define BJ888256_KEY_BYTE_SIZE		(BJ888256_KEY_BIT_SIZE / 8)


static TEE_Result set_bj888_key(void *session, uint32_t param_types,
                TEE_Param params[4])
{
    const uint32_t exp_param_types =
        TEE_PARAM_TYPES(TEE_PARAM_TYPE_MEMREF_INPUT,
                TEE_PARAM_TYPE_NONE,
                TEE_PARAM_TYPE_NONE,
                TEE_PARAM_TYPE_NONE);
    struct bj888_cipher *sess;
    TEE_Attribute attr;
    TEE_Result res;
    uint32_t key_sz1;
    char *key1;

    /* Get ciphering context from session ID */
    DMSG("Session %p: load ", session);
    sess = (struct bj888_cipher *)session;

    /* Safely get the invocation parameters */
    if (param_types != exp_param_types)
        return TEE_ERROR_BAD_PARAMETERS;

    key1 = params[0].memref.buffer;
    key_sz1 = params[0].memref.size;

    if (key_sz1 != sess->key_size) {
        EMSG("Wrong size %" PRIu32 ", expect %" PRIu32 " bytes",
             key_sz1, sess->key_size);
        return TEE_ERROR_BAD_PARAMETERS;
    }

    /*
     * Load the key material into the configured operation
     * - create a secret key attribute with the key material
     *   TEE_InitRefAttribute()
     * - reset transient object and load attribute data
     *   TEE_ResetTransientObject()
     *   TEE_PopulateTransientObject()
     * - load the key (transient object) into the ciphering operation
     *   TEE_SetOperationKey()
     *
     * TEE_SetOperationKey() requires operation to be in "initial state".
     * We can use TEE_ResetOperation() to reset the operation but this
     * API cannot be used on operation with key(s) not yet set. Hence,
     * when allocating the operation handle, we load a dummy key.
     * Thus, set_key sequence always reset then set key on operation.
     */
     //bj888默认一个key
    //char *key = "snbjklefsdcvfsyc";
    //uint32_t key_sz = 16;
    TEE_InitRefAttribute(&attr, TEE_ATTR_SECRET_VALUE, key1, key_sz1);

    TEE_ResetTransientObject(sess->key_handle);
    res = TEE_PopulateTransientObject(sess->key_handle, &attr, 1);
    if (res != TEE_SUCCESS) {
        EMSG("TEE failed, %x", res);
        return res;
    }

    TEE_ResetOperation(sess->op_handle);
    res = TEE_SetOperationKey(sess->op_handle, sess->key_handle);
    if (res != TEE_SUCCESS) {
        EMSG("TEE failed %x", res);
        return res;
    }

    return res;
}

/*
 * Process command TA_BJ888_CMD_SET_IV. API in bj888_ta.h
 */
static TEE_Result reset_bj888_iv(void *session, uint32_t param_types,
                TEE_Param params[4])
{
    const uint32_t exp_param_types =
        TEE_PARAM_TYPES(TEE_PARAM_TYPE_MEMREF_INPUT,
                TEE_PARAM_TYPE_NONE,
                TEE_PARAM_TYPE_NONE,
                TEE_PARAM_TYPE_NONE);
    struct bj888_cipher *sess;
    size_t iv_sz1;
    char *iv1;

    /* Get ciphering context from session ID */
    DMSG("Session %p: no hint", session);
    sess = (struct bj888_cipher *)session;

    /* Safely get the invocation parameters */
    if (param_types != exp_param_types)
        return TEE_ERROR_BAD_PARAMETERS;

    iv1 = params[0].memref.buffer;
    iv_sz1 = params[0].memref.size;

    /*
     * Init cipher operation with the initialization vector.
     */
    //char *iv = "snbjklefsdcvfsyc";
    //uint32_t iv_sz = 16;
    TEE_CipherInit(sess->op_handle, iv1, iv_sz1);

    return TEE_SUCCESS;
}

/*
 * Process command TA_BJ888_CMD_CIPHER. API in bj888_ta.h
 */
static TEE_Result cipher_buffer(void *session, uint32_t param_types,
                TEE_Param params[4])
{
    const uint32_t exp_param_types =
        TEE_PARAM_TYPES(TEE_PARAM_TYPE_MEMREF_INPUT,
                TEE_PARAM_TYPE_MEMREF_OUTPUT,
                TEE_PARAM_TYPE_NONE,
                TEE_PARAM_TYPE_NONE);
    struct bj888_cipher *sess;

    /* Get ciphering context from session ID */
    DMSG("Session %p: no hints", session);
    sess = (struct bj888_cipher *)session;

    /* Safely get the invocation parameters */
    if (param_types != exp_param_types)
        return TEE_ERROR_BAD_PARAMETERS;

    if (params[1].memref.size < params[0].memref.size) {
        EMSG("Bad sizes: in %d, out %d", params[0].memref.size,
                         params[1].memref.size);
        return TEE_ERROR_BAD_PARAMETERS;
    }

    if (sess->op_handle == TEE_HANDLE_NULL)
        return TEE_ERROR_BAD_STATE;
    const char *cipher = (const char *)(params[0].memref.buffer);
    const size_t cipher_len = strlen(cipher);
    /*
     * Process ciphering operation on provided buffers
     */
    TEE_CipherUpdate(sess->op_handle,
                params[0].memref.buffer, params[0].memref.size,
                params[1].memref.buffer, ¶ms[1].memref.size);
    const char *en = (const char *)(params[1].memref.buffer);
    const size_t en_len = 27;
    //char cmp[] = {0x20,0x0b,0x1c,0xff,0xc5,0xa4,0x0a,0xfe,0x31,0x10,0x9d,0x67,0xfe,0xf5,0x60,0xa9,0x9e,0xc6,0x44,0x93,0x36,0xa4,0xfd,0xe9,0x37,0x9d,0x07,0xf1,0x50,0xcc,0x84,0x95};
    char cmp[27] = {0x25,0x03,0x0a,0x6c,0xf8,0xb1,0xce,0x7f,0xc9,0x42,0x0c,0x0d,0x68,0xb3,0x1c,0x04,0x64,0xfa,0xe5,0xa4,0x22,0xd4,0x2c,0xff,0x4e,0x36,0x2a};
    for(int i = 0; i < 27; i++){
        if(cmp[i] != en[i])
        {
            char *buf = "wrong";
            TEE_MemMove(params[0].memref.buffer, buf, 6);
            TEE_Free(buf);
            return TEE_ERROR_BAD_PARAMETERS;
        }
    }
    char *buf1 = "right";
    TEE_MemMove(params[0].memref.buffer, buf1, 6);
    TEE_Free(buf1);
    return TEE_SUCCESS;
}

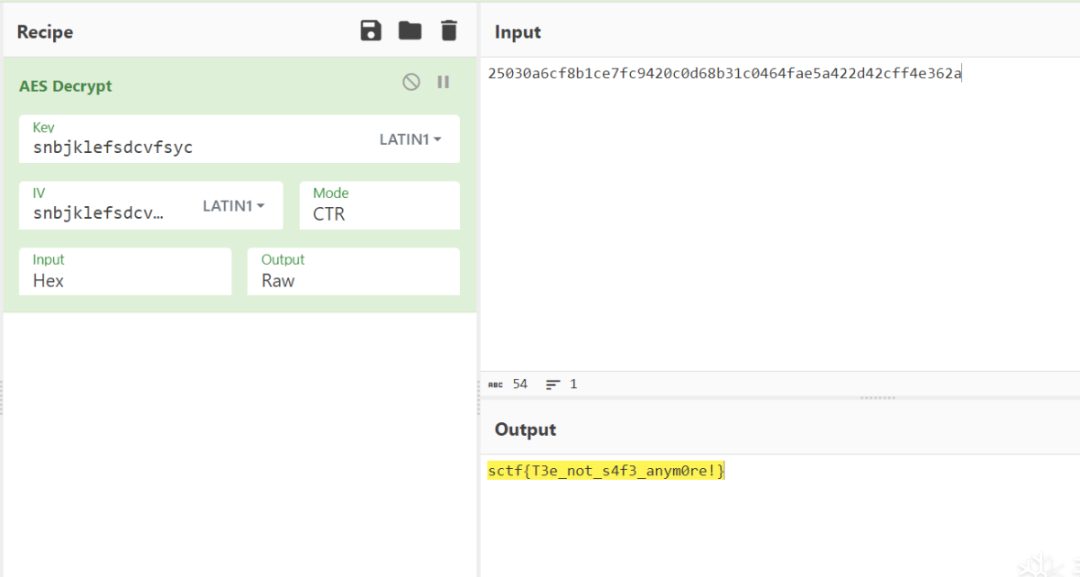

该加密是aes的ctr加密。

四

解题思路

本题采用optee项目，项目文档地址：https://optee.readthedocs.io/en/latest/

该题采用arm架构，意在找出系统中关键加密文件，从而拿到flag。

文件目录：

运行run.sh

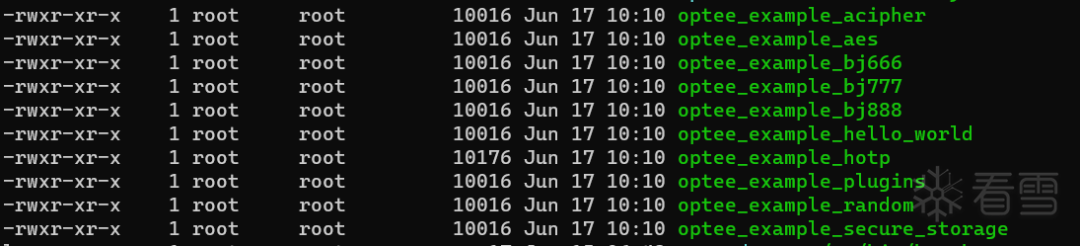

输入test进入测试，或者root进入系统，主要关注/usr/bin下可执行程序，由于optee环境中optee_example_*开头文件是源项目optee_expample文件夹下所编译文件，再对比源库，甚至可以从名字看出optee_example_bj666，optee_example_bj777，optee_example_bj888这写文件是后来写的文件。

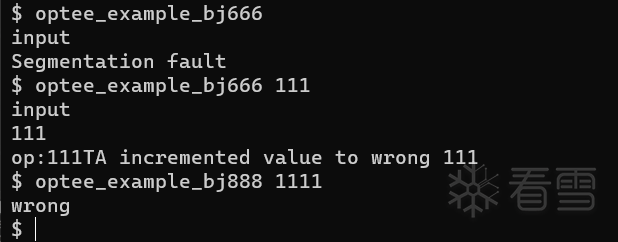

其实每一个文件都是有深意的，如果仔细看过optee_example_bj666代码，其实只需要找到ta文件就能逆向，而optee_example_bj777文件，是通过ca向ta传入key才可以逆向。上述两个文件也就演示了一些可信文件的基本操作。

找到可疑ca文件后，如何定位到ta文件也是考点之一，ta文件在/lib/optee_armtz目录下，以uuid开头，两种方法定位到对应uuid，第一种可以遍历目录下文件，查看字符串（如文件名bj777或者wrong）这种关键字符串。第二种通过strace可以轻松拿到对应ta文件的uuid：

bj666: 4194350e-9204-4348-ac59-ace9f0c055af
bj777: 372b9188-934f-469b-9bd3-124463c650bd
bj888：045ccc45-ee83-43ec-b69f-121819c1ba6b

从上述分析，我们只需要看bj888文件即可，先看ca文件。

__int64 __fastcall sub_A30(__int64 a1, __int64 a2)
{
  size_t v2; // x19
  const char *v3; // x21
  size_t v4; // x0
  char v6[24]; // [xsp+30h] [xbp-2040h] BYREF
  __int64 v7[4]; // [xsp+48h] [xbp-2028h] BYREF
  char v8[4096]; // [xsp+68h] [xbp-2008h] BYREF
  __int64 v9; // [xsp+1068h] [xbp-1008h] BYREF

  v2 = 0LL;
  v3 = *(const char **)(a2 + 8);
  qmemcpy(v7, "snbjklefsdcvfsycsnbjklefsdcvfsyc", sizeof(v7));
  while ( 1 )
  {
    v4 = strlen(v3);
    if ( v4 <= v2 )
      break;
    v8[v2] = v3[v2];
    ++v2;
  }
  if ( v4 != 27 )
  {
    puts("wrong");
    exit(1);
  }
  sub_C64(v6);
  sub_D64(v6, 1LL);
  sub_E14(v6, v7, 16LL);
  sub_EB8(v6, &v7[2], 16LL);
  sub_F40(v6, v8, &v9, 4096LL);
  sub_D3C(v6);
  return 0LL;
}

该main函数向ta文件传了一个字符串，并且判断字符串长度是否为27。

接下来是045ccc45-ee83-43ec-b69f-121819c1ba6b.ta文件。

__int64 __fastcall sub_1DC(int *a1, unsigned int a2, int a3, _QWORD *a4)
{
  int v7; // w5
  unsigned __int16 v8; // w0
  int v9; // w5
  int v10; // w5
  unsigned int v11; // w19
  __int64 v12; // x0
  __int64 v14; // x2
  unsigned int v15; // w3
  unsigned int v16; // w0
  unsigned int v17; // w0
  unsigned int v18; // w2
  __int64 v19; // x0
  __int64 v20; // x20
  __int64 v21; // x3
  __int64 i; // x0
  char v23[32]; // [xsp+40h] [xbp+40h] BYREF

  switch ( a2 )
  {
    case 0u:
      sub_930("alloc_resources", 124LL, 3LL, 1LL, "Session %p:", a1);
      if ( a3 != 273 )
        return (unsigned int)-65530;
      v7 = *(_DWORD *)a4;
      if ( *(_DWORD *)a4 == 1 )
      {
        v8 = 272;
      }
      else if ( v7 == 2 )
      {
        v8 = 528;
      }
      else
      {
        if ( v7 )
        {
          sub_930("ta2tee_algo_id", 70LL, 1LL, 1LL, "Invalid %u");
          return (unsigned int)-65530;
        }
        v8 = 16;
      }
      *a1 = v8 | 0x10000000;
      v9 = *((_DWORD *)a4 + 4);
      if ( v9 != 16 && v9 != 32 )
      {
        sub_930("ta2tee_key_size", 82LL, 1LL, 1LL, "Invalid %u");
        return (unsigned int)-65530;
      }
      a1[2] = v9;
      v10 = *((_DWORD *)a4 + 8);
      if ( v10 )
      {
        if ( v10 != 1 )
        {
          sub_930("ta2tee_mode_id", 96LL, 1LL, 1LL, "Invalid mode %u");
          return (unsigned int)-65530;
        }
        a1[1] = 0;
      }
      else
      {
        a1[1] = 1;
      }
      if ( *((_QWORD *)a1 + 2) )
        sub_3018();
      v11 = sub_305C(a1 + 4, (unsigned int)*a1, (unsigned int)a1[1], (unsigned int)(8 * a1[2]));
      if ( v11 )
      {
        sub_930("alloc_resources", 160LL, 1LL, 1LL, "Failed to allocate");
        *((_QWORD *)a1 + 2) = 0LL;
      }
      else
      {
        if ( *((_QWORD *)a1 + 3) )
          sub_2400();
        v11 = sub_2380(2684354576LL, (unsigned int)(8 * a1[2]), a1 + 6);
        if ( v11 )
        {
          sub_930("alloc_resources", 174LL, 1LL, 1LL, "Failed to allocate");
          *((_QWORD *)a1 + 3) = 0LL;
        }
        else
        {
          v14 = sub_1F70((unsigned int)a1[2], 0LL);
          if ( v14 )
          {
            sub_2578(v23, 3221225472LL, v14, (unsigned int)a1[2]);
            v11 = sub_24A8(*((_QWORD *)a1 + 3), v23, 1LL);
            if ( v11 )
            {
              sub_930("alloc_resources", 198LL, 1LL, 1LL, "TEE failed, %x", v11);
            }
            else
            {
              v11 = sub_3DC0(*((_QWORD *)a1 + 2), *((_QWORD *)a1 + 3));
              if ( !v11 )
                return v11;
              sub_930("alloc_resources", 204LL, 1LL, 1LL, "TEE failed %x", v11);
            }
          }
          else
          {
            v11 = -65524;
          }
        }
      }
      if ( *((_QWORD *)a1 + 2) )
        sub_3018();
      v12 = *((_QWORD *)a1 + 3);
      *((_QWORD *)a1 + 2) = 0LL;
      if ( v12 )
        sub_2400();
      *((_QWORD *)a1 + 3) = 0LL;
      return v11;
    case 1u:
      sub_930("set_bj888_key", 240LL, 3LL, 1LL, "Session %p: load ", a1);
      if ( a3 != 5 )
        return (unsigned int)-65530;
      v15 = *((_DWORD *)a4 + 2);
      if ( v15 != a1[2] )
      {
        sub_930("set_bj888_key", 251LL, 1LL, 1LL, "Wrong size %u, expect %u bytes", v15);
        return (unsigned int)-65530;
      }
      ((void (*)(void))sub_2578)();
      sub_2454(*((_QWORD *)a1 + 3));
      v16 = sub_24A8(*((_QWORD *)a1 + 3), v23, 1LL);
      v11 = v16;
      if ( v16 )
      {
        sub_930("set_bj888_key", 280LL, 1LL, 1LL, "TEE failed, %x", v16);
      }
      else
      {
        sub_3D48(*((_QWORD *)a1 + 2));
        v17 = sub_3DC0(*((_QWORD *)a1 + 2), *((_QWORD *)a1 + 3));
        v11 = v17;
        if ( v17 )
          sub_930("set_bj888_key", 287LL, 1LL, 1LL, "TEE failed %x", v17);
      }
      return v11;
    case 2u:
      sub_930("reset_bj888_iv", 310LL, 3LL, 1LL, "Session %p: no hint", a1);
      if ( a3 != 5 )
        return (unsigned int)-65530;
      sub_42E4(*((_QWORD *)a1 + 2), *a4, *((unsigned int *)a4 + 2));
      return 0;
    case 3u:
      sub_930("cipher_buffer", 344LL, 3LL, 1LL, "Session %p: no hints", a1);
      if ( a3 != 101 )
        return (unsigned int)-65530;
      v18 = *((_DWORD *)a4 + 2);
      if ( *((_DWORD *)a4 + 6) < v18 )
      {
        sub_930("cipher_buffer", 352LL, 1LL, 1LL, "Bad sizes: in %d, out %d", v18);
        return (unsigned int)-65530;
      }
      v19 = *((_QWORD *)a1 + 2);
      if ( !v19 )
        return (unsigned int)-65529;
      sub_43C4(v19, *a4);
      v20 = a4[2];
      v21 = sub_20(v23, &unk_11AFA, 27LL);
      for ( i = 0LL; i != 27; ++i )
      {
        if ( *(unsigned __int8 *)(v21 + i) != *(unsigned __int8 *)(v20 + i) )
        {
          sub_1E10(*a4, "wrong", 6LL);
          sub_1FD8("wrong");
          return (unsigned int)-65530;
        }
      }
      sub_1E10(*a4, "right", 6LL);
      sub_1FD8("right");
      return 0;
    default:
      v11 = -65526;
      sub_930("TA_InvokeCommandEntryPoint", 452LL, 1LL, 1LL, " 0x%x is not supported", a2);
      return v11;
  }
}

可以看到主要逻辑是获取key和iv然后进行加密，再对比。如果有手动构建过optee的话，这个其实就是内置的aes的ctr加密魔改过来的，加密并没有魔改，只是将key和iv初始化在了host，下面可以直接用在线网站跑出结果：

当然，最好的方法是修改optee_example_aes文件中host目录下的main：

int main(void)
{
    struct test_ctx ctx;
    char key[AES_TEST_KEY_SIZE]="snbjklefsdcvfsyc";
    char iv[AES_BLOCK_SIZE]="snbjklefsdcvfsyc";
    char clear[AES_TEST_BUFFER_SIZE];
    char ciph[AES_TEST_BUFFER_SIZE]={0x25, 0x03, 0x0A, 0x6C, 0xF8,
  0xB1, 0xCE, 0x7F, 0xC9, 0x42, 0x0C, 0x0D, 0x68, 0xB3, 0x1C, 0x04,
  0x64, 0xFA, 0xE5, 0xA4, 0x22, 0xD4, 0x2C, 0xFF, 0x4E, 0x36, 0x2A};
    char temp[AES_TEST_BUFFER_SIZE];

    //printf("Prepare session with the TA\\n");
    //prepare_tee_session(&ctx);

    //printf("Prepare encode operation\\n");
    //prepare_aes(&ctx, ENCODE);

    //printf("Load key in TA\\n");
    //memset(key, 0xa5, sizeof(key)); /* Load some dummy value */
    //set_key(&ctx, key, AES_TEST_KEY_SIZE);

    //printf("Reset ciphering operation in TA (provides the initial vector)\\n");
    //memset(iv, 0, sizeof(iv)); /* Load some dummy value */
    //set_iv(&ctx, iv, AES_BLOCK_SIZE);

    //printf("Encode buffer from TA\\n");
    //memset(clear, 0x5a, sizeof(clear)); /* Load some dummy value */
    //cipher_buffer(&ctx, clear, ciph, AES_TEST_BUFFER_SIZE);

    printf("Prepare decode operation\\n");
    prepare_aes(&ctx, DECODE);

    //printf("Load key in TA\\n");
    //memset(key, 0xa5, sizeof(key)); /* Load some dummy value */
    set_key(&ctx, key, AES_TEST_KEY_SIZE);

    //printf("Reset ciphering operation in TA (provides the initial vector)\\n");
    //memset(iv, 0, sizeof(iv)); /* Load some dummy value */
    set_iv(&ctx, iv, AES_BLOCK_SIZE);

    printf("Decode buffer from TA\\n");
    cipher_buffer(&ctx, ciph, temp, AES_TEST_BUFFER_SIZE);

    /* Check decoded is the clear content */
    if (memcmp(clear, temp, AES_TEST_BUFFER_SIZE))
        printf("Clear text and decoded text differ => ERROR\\n");
    else
        printf("Clear text and decoded text match\\n");

    terminate_tee_session(&ctx);
    return 0;
}
